Staking Before an Advanced Manufacturing Site Goes Vertical
An advanced manufacturing building isn’t just a big box. It’s full of equipment pads, work areas, tight grids, and pipes and wires. All of it has to line up just right. Construction staking makes that happen. It takes the design on paper and turns it into real points on the ground. That way, every crew on the site builds from the same information. Before any wall or column goes up, this groundwork has to be solid. Get it wrong at the start, and the problems only grow as the building rises.
Establishing Control Before Structural Layout Begins
Every staking job starts with control. Surveyors set horizontal and vertical points early on. These points become the reference for everything that follows. On a big manufacturing site, several contractors often work from the same control network. This holds true as the project moves from earthwork into building up.
This matters because mismatched control causes problems that show up much later. If one crew builds off a slightly different point than another, the mistake might not show up until steel starts going up. By then, it’s expensive to fix. Reliable control at the start keeps every trade working from the same numbers. It also gives the project a stable base for the layout work that comes next.

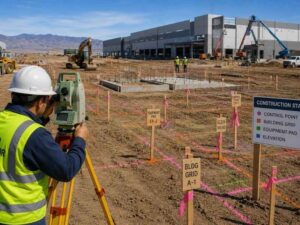

Staking Building Grids for Large Manufacturing Facilities
Manufacturing buildings are usually laid out on a planned grid. This grid tells crews exactly where columns, walls, and foundations go. Surveyors take that grid from the design drawings and move it into the field. They mark the real spots crews need to build from.
Big industrial footprints make this step extra important. A small error on a small building might barely matter. On a manufacturing site that stretches across hundreds of feet, that same small error can multiply across the grid. It can throw off column spacing on the far side of the building. Careful grid staking keeps every part of the structure lined up with the parts next to it. That way, foundations and columns land exactly where the design meant for them to go.
Coordinating Staking for Equipment Pads and Process Areas
Advanced manufacturing sites usually need more than a normal building layout. Equipment foundations, work areas, and utility pads often need exact placement. This placement ties back to specific machines or process needs shown in the engineering plans.
Staking connects these special parts back to the approved design and the set site control. A production line might need equipment pads set at exact spacing to match machine sizes. A utility pad might need to sit within a tight distance of a wall or another foundation. Getting these points staked right means the equipment team can move forward with confidence, instead of finding a spacing problem after concrete has already been poured.
Verifying Elevations Before Foundations and Slabs Are Built
Where a thing sits sideways is only half the picture. Height matters just as much, especially before concrete gets poured. Survey staking gives crews the exact heights they need to work from. This might be a foundation grade, a finished floor level, or a change between slab sections.
Getting these heights right the first time avoids problems that are hard to fix later. A foundation poured too high or too low can affect how equipment sits once it’s installed. A finished floor height that’s off can cause drainage problems or uneven spots between different parts of the building. Checking these numbers before concrete goes down protects the schedule. It also keeps the structure lined up with what the design actually calls for.
Keeping Survey Control Consistent as Multiple Trades Enter the Site
Once construction moves into full swing, several trades often work on the same site at the same time. Digging crews, concrete crews, steel workers, and utility crews all need reliable layout information. All of them can also knock out the marks that came before them.
Heavy equipment, digging, and general site traffic can knock out stakes or bury reference points without anyone meaning to. This is why protecting control points matters so much once work ramps up. Surveyors often need to check whether disturbed layout still matches the plans. Restaking becomes part of the job when the original marks get lost or damaged. Keeping this cycle running smoothly is what lets several trades keep building on the same accurate information, even as the site changes day to day.
Frequently Asked Questions
Why is construction staking especially important for an advanced manufacturing facility?
These projects combine large buildings, special equipment areas, and utilities that all need tight teamwork between trades. Steady field layout becomes very important before the building starts to rise.
When should staking begin before a manufacturing building goes vertical?
Staking usually starts before the main foundations and building parts get placed. More layout work happens as the project moves forward and new phases start.
Can surveyors restake points that are destroyed during construction?
Yes. Stakes and marks often get knocked out by digging, equipment, and site traffic. Surveyors can come back and set the layout again using protected control points as a guide.
Does construction staking include equipment foundation locations?
It can. Special pads or equipment foundations are often included when their spots and heights are part of the approved plans and the agreed survey scope.
